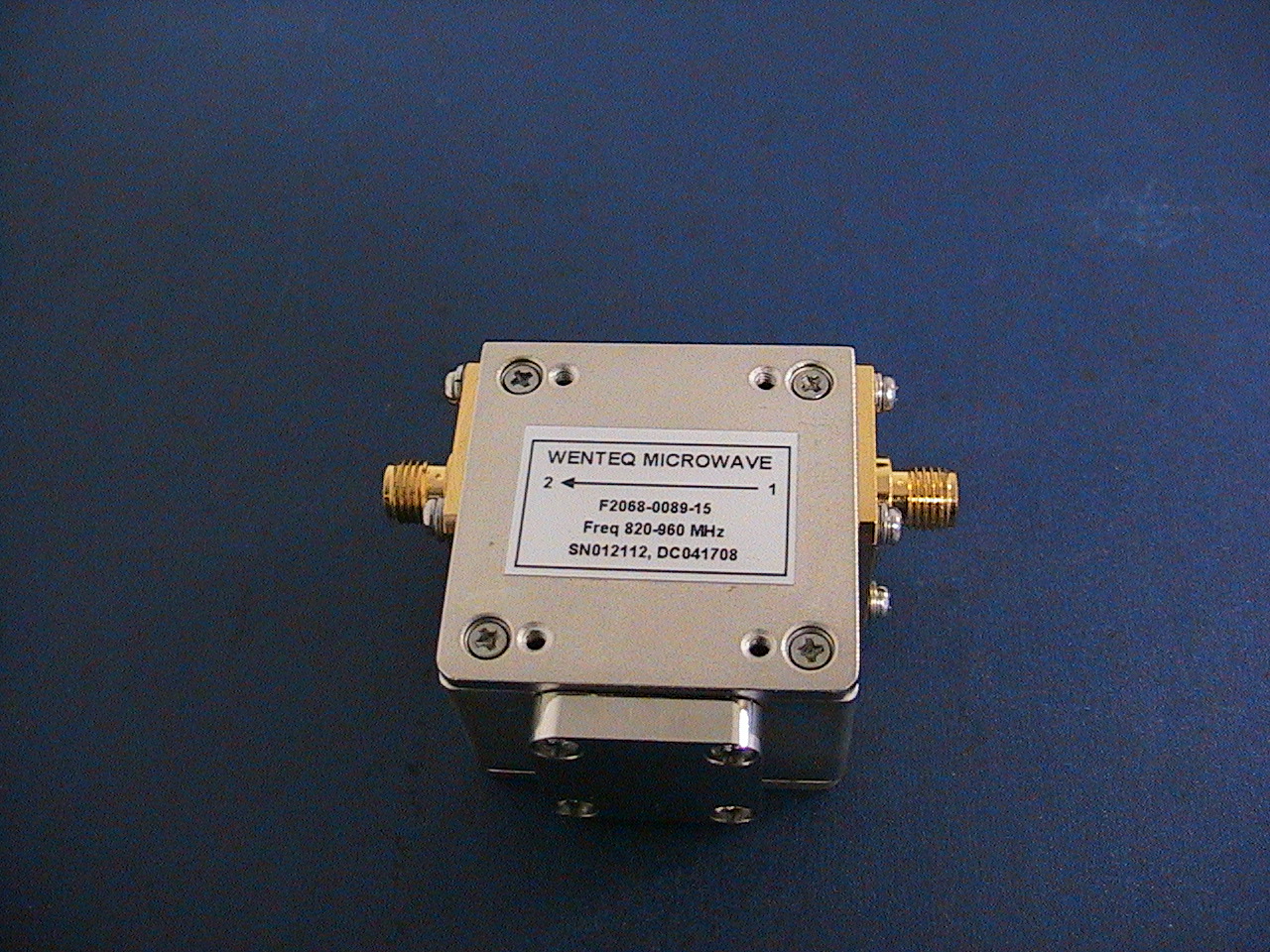

Dual Junction Coaxial Isolator
Wenteq Microwave Corporation offers a wide range of narrow and wide bandwidth RF and microwave isolator and circulator products in coaxial, drop-in and waveguide configurations. These products cover the frequency range from 40MHz to 100GHz. Customers can select from the products listed below or simply send us your application requirements and we will pick the best match from our product list or specifically design it to meet customer requirements.






Isolator Freq.
(MHz)
BW (GHz) Insertion
Loss(dB)
Isolation
(dB)
VSWR Temp.
(ーC)1.25
Forward CW
Power(W)
Conn. Dimension
LxWxH
(mm)
F2416 60-220 25% 1.2 40 1.2 -10-+60 50 N or SMA 4.2x3.0x1.0 inches
F2420 225-400 full band 2.0 35 1.4 -20-+55 80 N or SMA 4.2x3.0x1.0 inches
F2448 400-970 360 1.0 34 1.35 -40-+70 50 N or SMA 120x60x30
F2450 0.8-2.0 300 0.8 40 1.25 -20-+65 50 SMA 70x35x22
