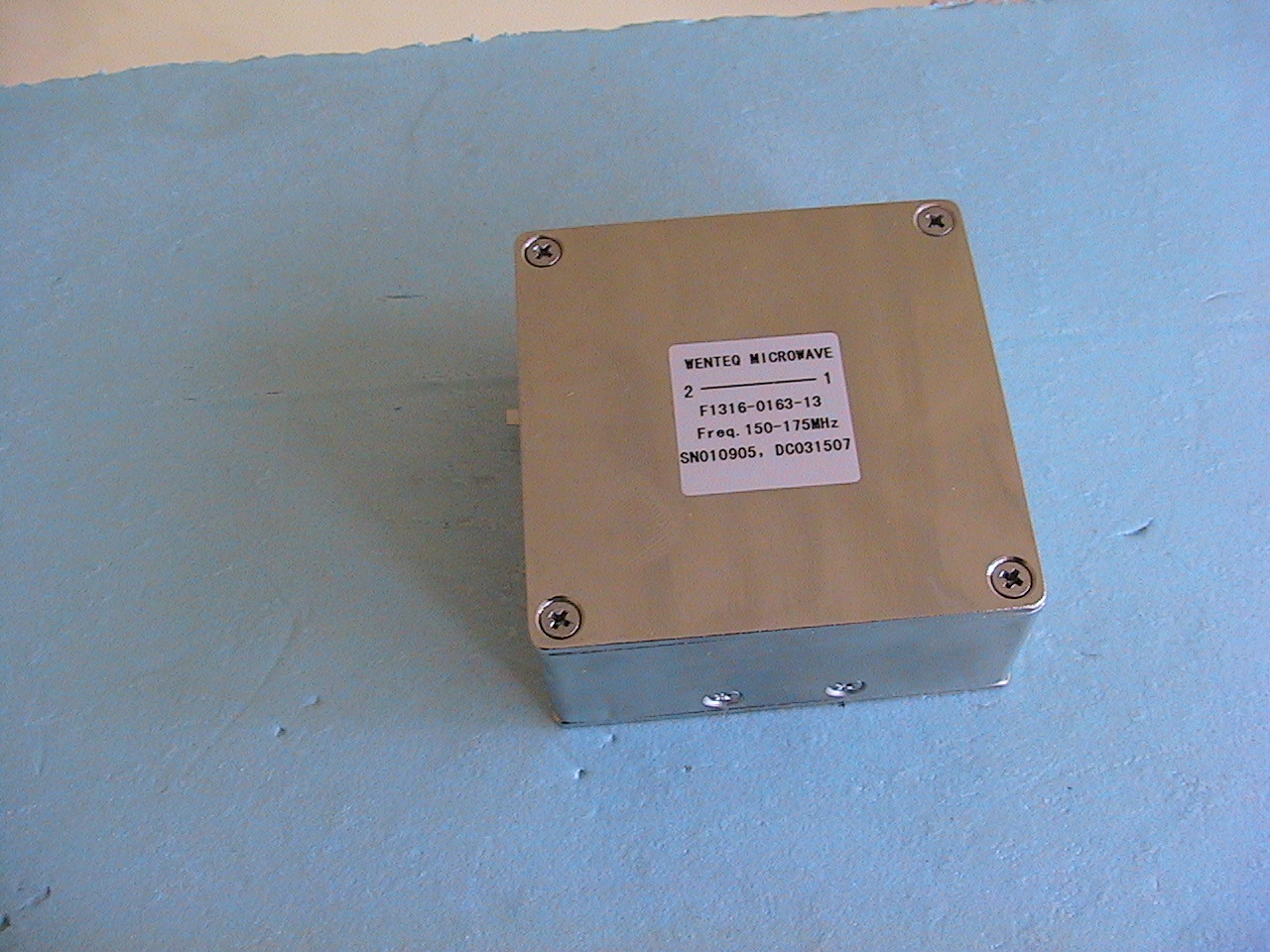

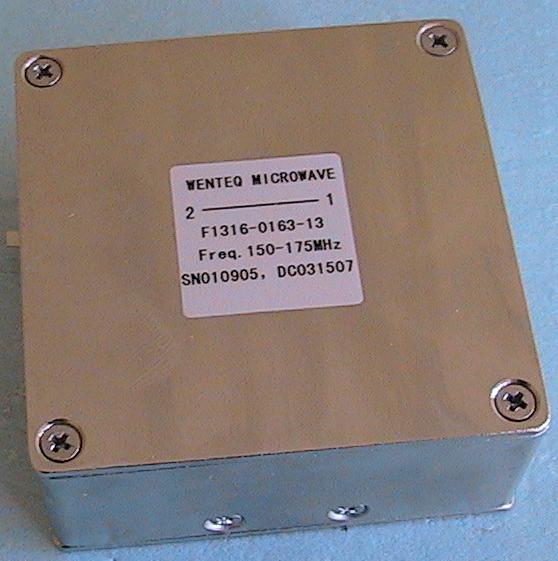

Drop-in Isolators
Wenteq Microwave Corporation offers a wide range of narrow and wide bandwidth RF and microwave isolator and circulator products in coaxial, drop-in and waveguide configurations. These products cover the frequency range from 40MHz to 100GHz. Customers can select from the products listed below or simply send us your application requirements and we will pick the best match from our product list or specifically design it to meet customer requirements.








Isolator Freq.
(GHz)
BW (GHz) Ins.(dB) Iso.(dB) VSWR Temp. (c) Avg. Power (W) Reverse
CW
Power(W)
Stripline Dimension(mm) Dimension LxWxH(mm)
F1050 0.7-1.0 3% 0.6 18 1.25 -25-+55 10 10 1x3 15x15x6
F1068 0.8-2.5 0.3 0.5 20 1.2 -30-+60 30 10 1x2 20x26x10
F1069 0.8-2.0 0.1 0.5 20 1.2 -30-+60 50 30 1x2 25x29x10
F1080 2.0-3.0 0.2 0.5 20 1.2 -30-+65 25 10 1.5x2 30x30x12
F1102 2.5-3.5 0.2 0.5 20 1.2 -30-+60 5 5 1x2 26x30x12
F1140 4.2-5.0 0.2 0.5 20 1.2 -30-+60 5 5 1x2 13.8x20x7.5
F1162 5.5-7.0 0.2 0.4 20 1.2 -30-+60 5 5 1x2 12x20x9
F1220 7.0-18.0 0.5-1 0.5 20 1.2 -30-+60 5 5 1x2 15x20x7.5
F1228 7.0-18.0 0.5-1 0.5 20 1.2 -30-+60 5 5 1x2 8.9x16x8
