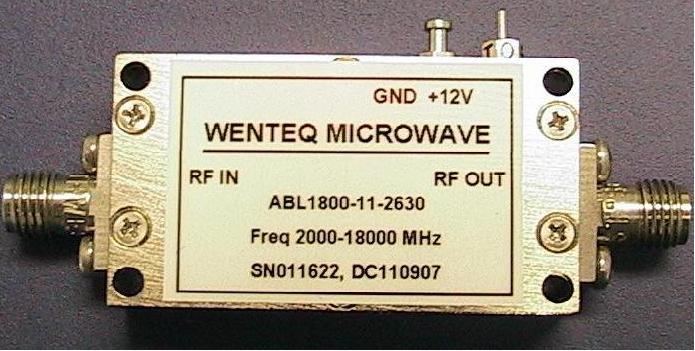

Broadband Low Noise Amplifiers

Product features:

Products cover 10MHz to 40GHz frequency range
Octave or multi-octave band operation
Very low noise figure, high gain, noise figure as low as 0.5dB, and gain as high as 50dB
Operating temperature range -40 - +85 C
Small size, extremely cost effective
SMA, Type N, k connectors or waveguide interfaces available

Product Descriptions:

Wenteq Microwave's broadband low noise amplifiers are the most cost effective solutions for applications that require broad band signal low noise amplification. Specifications listed below are room temperature results. We can also modify our designs to meet customers' specific requirements. For detailed specifications, please click the part number in the table.

Model	Freq. GHz	Noise Figure Typical (dB)	Power Gain	Gain Flatness	In/out VSWR	Output P1dB Power	VCC Voltage
ABL0015-01-2317	0.0001~0.15	1.7	23	±1.0	1.5.:1	+12	40mA@+12
ABL0050-20-2008	0.10~0.50	0.8	20	±1.0	1.3.:1	+15	60mA@+12
ABL0050-20-4008	0.10~0.50	0.8	40	±1.0	1.3:1	+10	90mA@+12
ABL0050-20-5008	0.10~0.50	0.8	40	±1.0	1.3:1	+10	95mA@+12
ABL0100-01-1810	0.10~1.00	1.0	18	±0.75	1.5:1	+10	50mA@+12
ABL0100-01-3010	0.01~1.00	1.0	30	±0.75	1.3:1	+17	110mA@+12
ABL0100-01-4010	0.01~1.00	1.0	40	±1.0	1.5:1	+18	110mA@+12
ABL0100-01-5010	0.01~1.00	1.0	50	±1.5	1.5:1	+18	170mA@+12V
ABL0120-01-3525	0.01~1.20	2.2	35	±1.0	2:1	+12	90mA@+12V
ABL0120-01-4025	0.01~1.20	2.0	40	±1.0	1.8:1	+12	100mA@+12
ABL0150-01-3025	0.01~1.50	2.0	30	±1.0	1.5:1	+11	90mA@+12
ABL0200-01-2718	0.10~2.00	1.8	27	±0.75	1.5:1	+22	170mA/+12V
ABL0200-50-3516	1.0~2.0	1.6	35	±0.5	1.5:1	+15	120mA/+12V
ABL0200-50-4010	1.0~2.0	1.0	40	±1.0	2.0:1	+11	120mA/12V
ABL0300-00-2530	9k~3.0	2.5	25	±1.0	2:1	+12	90mA/+12V
ABL0300-00-3230	9k~3.0	2.5	32	±1.0	2:1	+15	90mA/+12V
ABL0300-01-2516	0.02~3.0	1.6	25	±0.5	1.5:1	+12	70mA/+10.5‾15V
ABL0300-01-3414	0.02~3.0	1.4	34	±0.5	1.7:1/1.8:1	+11	95mA/+10.5‾15V
ABL0300-17-3314	0.5~3.0	1.3	33	±1.0	2:1	+15	90mA/+8‾15V
ABL0400-03-3515	0.10~4.0	1.5	35	±1.25	1.7:1	+12	100mA@+12V
ABL0400-25-2415	1.0~4.0	1.5	24	±1.5	2:1	+10	50mA@+12V
ABL0400-25-3715	1.0~4.0	1.5	37	±1.5	2:1	+15	120mA/+10-15V
ABL0400-50-2612	2.0~4.0	1.2	26	±1.0	2:1	+12	50mA/+6-12 V
ABL0400-50-4013	2.0~4.0	1.3	37	±1.5	2:1	+10	120mA@+12V
ABL0600-01-1640	0.01~6.0	4.0	16	±1.5	1.5:1	+15	60mA@+12V
ABL0600-01-2740	0.05~6.0	4.0	27	±2.5	2:1	+16	130mA@+12V
ABL0600-01-3240	0.01~6.0	4.0	32	±2.0	1.5:1	+14	110mA@+12
ABL0600-01-3440	0.01~6.0	4.0	34	±2.0	1.5:1	+14	110mA@+12
ABL0600-01-4345	0.01~6.0	4.5	43	±1.25	1.5:1	+14	160mA@+12
ABL0600-33-2608	2.0~6.0	0.8	26	±0.85	1.5:1	+10	50mA@+12V
ABL0600-33-4009	2.0~6.0	0.9	40	±1.0	1.5:1	+15	100mA@+12V
ABL0800-12-3315	1.0~8.0	1.5	33	±1.5	2.0:1	+15	120mA@+12V
ABL1200-08-1620	1.0~12.0	2.0	16	±2.0	2:1	+15	65mA@+12V
ABL1200-08-3220	1.0~12.0	2.0	32	±2.5	2:1	+15	130mA@+12V
ABL1800-01-1430	0.1~18.0	3.0	14	±1.5	2:1	+16	80mA@+12V
ABL1800-01-2830	0.1~18.0	3.0	28	±2.0	2:1	+16	160mA@+12V
ABL1800-11-1330	2.0~18.0	3.0	13	±1.0	2:1	+14	75mA@+12V
ABL1800-11-2630	2.0~18.0	3.0	26	±2.0	2:1	+14	140mA@+12V
ABL1800-11-3330	2.0~18.0	3.0	33	±2.0	2:1	+14	180mA@+12V
ABL1800-33-2225	6.0~18.0	2.5	22	±2.0	2:1	+9.0	60mA@+12V
ABL1800-33-3020	6.0~18.0	2.0	30	±2.0	2:1	+18	180mA@+15V
ABL1800-33-3525	6.0~18.0	2.5	35	±2.0	2:1	+15	170mA@+12V
ABL1800-33-3820	6.0~18.0	2.0	38	±2.0	2:1	+22	280mA@+15V
AW28L3325-FU-2235	26.5~40.0	3.5	22	±1.0	2:1	+15	120mA@+12V
