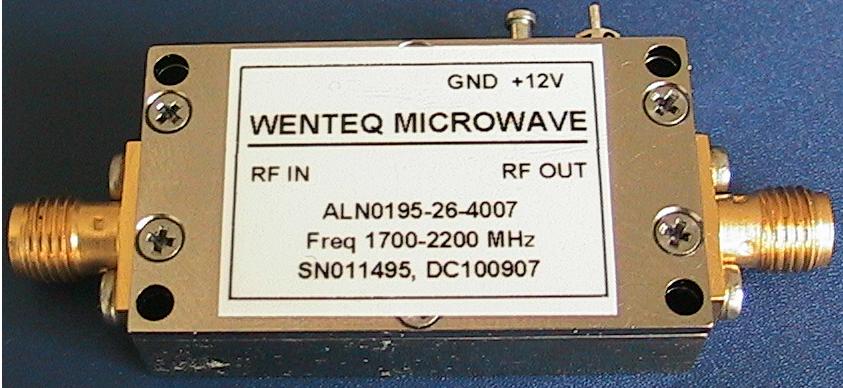

Super low noise amplifiers

Product features:

  • Products cover 10MHz to 50GHz frequency range
  • Super low noise, high gain, noise figure as low as 0.5dB, and gain as high as 50dB
  • Operating temperature range 40 ‾ +85ｰC
  • Small size, very low cost
  • SMA female I/O or drop-in connections

Product Descriptions:

Wenteq Microwave's super low noise amplifiers are the most cost effective solutions for applications that require extremely low noise amplification over 10MHz to 50GHz frequency range. Specifications listed below are room temperature results. The information show below is provided for showing our capabilities. Customers are encouraged to provide us with their specific requirements so we can deliver the amplifiers our customers need.







Electrical Specifications:
Model Frequency, (GHz) Noise Figure, Typical (dB) Power Gain, (dBm) Gain Flatness, (dB) Input/output VSWR Output P1dB Power, (dBm) VCC Voltage, (V)
ALN0025-40-3006 0.2~0.3 0.6 30 ±0.35 1.5:1 +16 110mA@+10~12
ALN0025-40-4006 0.2~0.3 0.6 40 ±0.50 1.5:1 +16 120mA@+10~12
ALN0035-29-3006 0.3~0.4 0.6 30 ±0.35 1.5:1 +16 110mA@+10~12
ALN0035-29-4006 0.3-0.4 0.6 40 ±0.50 1.5:1 +16 120mA@+10-+12
ALN0050-40-3006 0.4~0.6 0.6 30 ±0.35 1.5:1 +16 110mA@+10~12
ALN0050-40-4006 0.4~0.6 0.6 40 ±0.50 1.5:1 +16 120mA@+10~12
ALN0060-33-3006 0.5~0.7 0.6 30 ±0.35 1.5:1 +16 110mA@+10~12
ALN0060-33-4006 0.5~0.7 0.6 40 ±0.50 1.5:1 +16 120mA@+10~12
ALN0090-22-3406 0.8-1.0 0.6 34 ±0.50 1.35:1/1.6:1 +13 60mA@+10-+12
ALN0090-22-4306 0.8~1.0 0.6 43 ±0.50 1.5:1 +16 120mA@+10~12
ALN0120-42-3306 0.95~1.45 0.6 33 ±0.50 1.5:1 +15 60mA@+10~12
ALN0120-42-4206 0.95~1.45 0.6 42 ±0.50 1.5:1 +16 110mA@+10~12
ALN0120-42-5006 0.95~1.45 0.6 50 ±0.50 1.5:1 +16 120mA@+10~12
ALN0140-29-3206 1.2~1.6 0.6 32 ±1.0 1.5 +16 60mA@+10-+12
ALN0140-29-4007 1.2~1.6 0.7 40 ±0.50 1.5:1 +12 100mA@+10-12
ALN0140-29-5007 1.2~1.6 0.7 50 ±1.0 1.5 +12 100mA@+10~12
ALN0165-18-4207 1.5~1.8 0.7 42 ±1.0 1.6:1 +12 120mA@+10~12
ALN0195-11-3007 1.7~2.2 0.65 30 ±1.0 1.7 +16 60mA@+10~12
ALN0195-11-4007 1.7~2.2 0.7 40 ±1.0 1.6 +12 130mA@+10~12
ALN0195-11-5007 1.7~2.2 0.7 50 ±1.25 1.8:1 +12 130mA@+10~12
ALN0230-26-2607 2.0~2.6 0.7 26 ±1.0 2.0 +10 50mA+8~12
ALN0230-26-4007 2.0~2.6 0.7 40 ±1.0 2.0 +10 95mA@+10~12
ALN0230-26-4807 2.0~2.6 0.7 48 ±1.0 2.0:1 15 140mA@+10~12
ALN0285-18-2308 2.6~3.1 0.8 23 ±0.75 1.6:1 15 55mA@+8~12
ALN0285-18-3508 2.6~3.1 0.8 35 ±0.75 1.6:1 15 130mA@+10~12
ALN0325-15-2808 3.0~3.5 0.8 28 ±0.75 1.5:1 10 40mA@+10~12
ALN0390-15-4007 3.6~4.2 0.7 40 ±1.0 1.5:1/1.5:1 +10 90mA@+10~12
ALN0410-34-3012 3.4~4.8 1.2 30 ±1.0 1.5 +10 +10~12
ALN0410-34-3012 3.4~4.8 1.2 30 ±1.0 2.0:1 +13 90mA@+10~12
ALN0425-12-3007 4.0~4.5 0.7 30 ±0.5 1.5:1 +10 100mA@+10~12
ALN0425-12-4007 4.0-4.5 0.7 40 ±1.0 1.5:1 +10 120mA@+10-+12
ALN0470-13-3612 4.4-5.0 1.2 30 ±0.75 1.5:1 +10 100mA@+10-12
ALN0545-13-3809 5.1-5.8 0.8 38 ±0.25 1.7:1/2.5:1 +20 250mA@+8
ALN0560-11-2709 5.3-5.9 0.9 27 ±0.50 1.7:1 +13 50mA@+10-12
ALN0545-13-3809 5.6-6.4 1.2 30 ±0.75 1.8:1 +11 80mA@+12
ALN0640-24-3013 5.8-7.0 1.3 30 ±1.0 2.0:1 +13 80mA@+10~12
ALN0695-04-2212 6.8-7.1 1.2 22 ±1.0 2.0:1 +10 50mA@+10~12
ALN0825-07-3013 7.95-8.55 1.0 30  ±1.0 2.0 +10 80mA@+10~12
ALN0905-12-3010 8.5~9.6 1.0 30 ±1.25 2.0 +10 80mA@+10~12
ALN1000-10-3010 9.5~10.5 1.0 30 ±1.0 2.0 +10 80mA@+10~12
ALN1110-11-3013 10.5~11.7 1.3 30 ±1.0 2.0 +10 80mA@+10~12
ALN1260-30-3015 10.7~14.5 1.5 30 ±1.25 2.0 +10 80mA@+10~12
ALN2200-36-3520 18.0~26.0 2.0 35 ±1.5 2.0:1 +12 160mA@+10~12
ALN2300-26-3320 20.0~26.0 2.0 33 ±1.0 2.0:1 +12 160mA@+10~12
ALN2600-13-3025 25.0~27.0 2.5 30 ±1.0 2.0 +10 140mA@+9~12
ALN3175-05-3035 31.0~32.5 3.5 30 ±1.0 2.0:1 +10 120mA@+9~12
ALN3325-41-2235 26.5~40.0 3.5 22 ±1.0 1.7:1 +12 125mA@+9~12



Ordering information:

ALNcccc-bw-ggnn
cccc---center frequency, cc.cc GHz, bw---percentage bandwidth bw%, gg---power gain gg dB, and nn-noise figure n.n dB.
